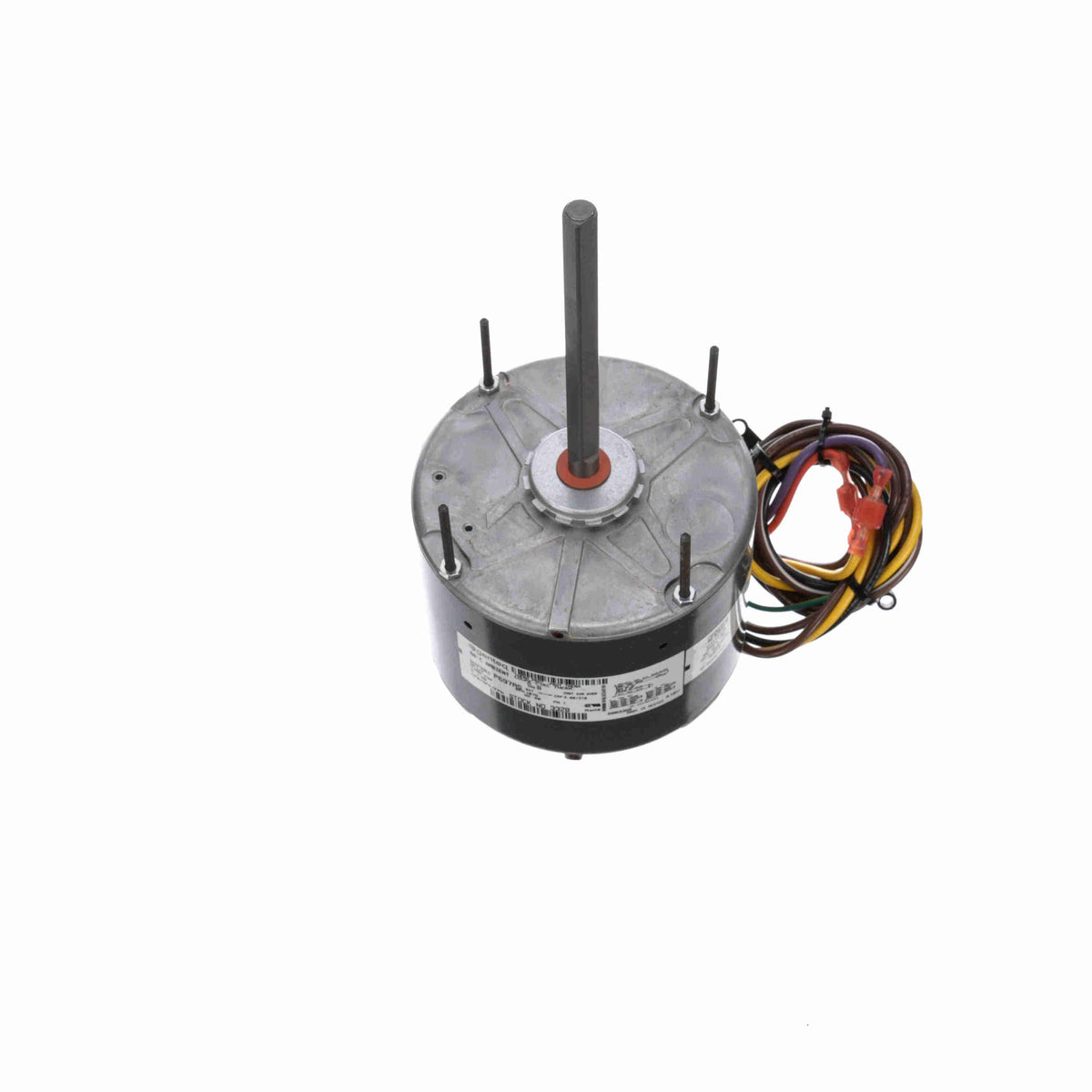

1/4 HP Condenser Fan Motor, 1075 RPM, 208-230 Volts, 48 Frame M3012
Sale price
$27.99
Regular price $90.21
Skip to product information
SKU - G3328 UPC - 815585021704 Condenser Fan - Heat Pump Motor 5.6" Diameter - 48 Frame Permanent Split Capacitor Thermally Protected Totally Enclosed Air Over Class B Insulation, 60°C Ambient Sleeve Bearing 1/2" Diameter Shaft with Double Flat?" Leads Shaft Up/Horizontal, Extended Pul Length 13.24 Width 6.04 Height 6.02 Dimension Unit of Measure IN Weight 10.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.25 Power Rating (In KW) Speed (Max) 1075 Voltage 208-230 Frame Size 48 Enclosure Type Open Air Over Rotation Reversible Mounting Type Round Max Ambient 60°C Shaft Diameter ( In in.) 0.500 C Dim 11.13 Connection Drawing No NP24X327691 DE Bearing Type Sleeve Duty Continuous Air Over Electrical Type Permanent Split Capacitor Frame Length 3.57 Frame Material Rolled Steel Frame Type 48 Frequency 60 HP2 1/4 Number of Poles 6 Number of speeds 1 ODE Bearing Type Sleeve Outline Drawing No 5KCP39EGP697AS Service Factor 1 Shaft Extension 6.00 Shaft Type Double Flat Speed2 1075 Starting Type Thermally Protected UDF_MANUFACTURER Fasco
1/4 HP Condenser Fan Motor, 1075 RPM, 208-230 Volts, 48 Frame M3012
Sale price
$27.99
Regular price $90.21
Shipping calculated at checkout.
